48v Lithium Electric Bike

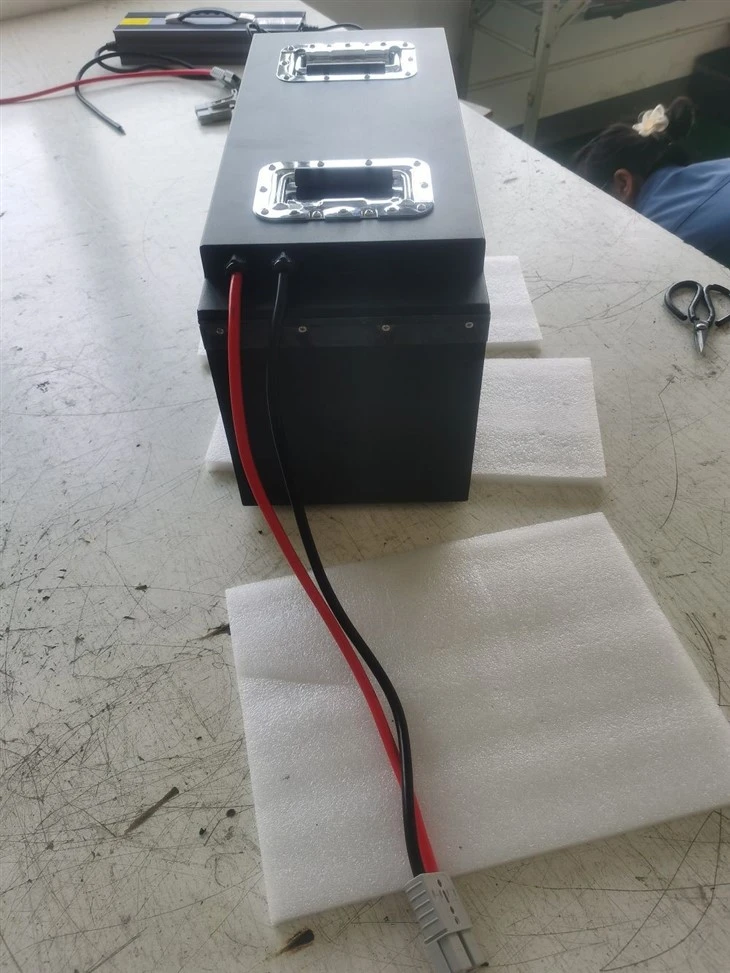

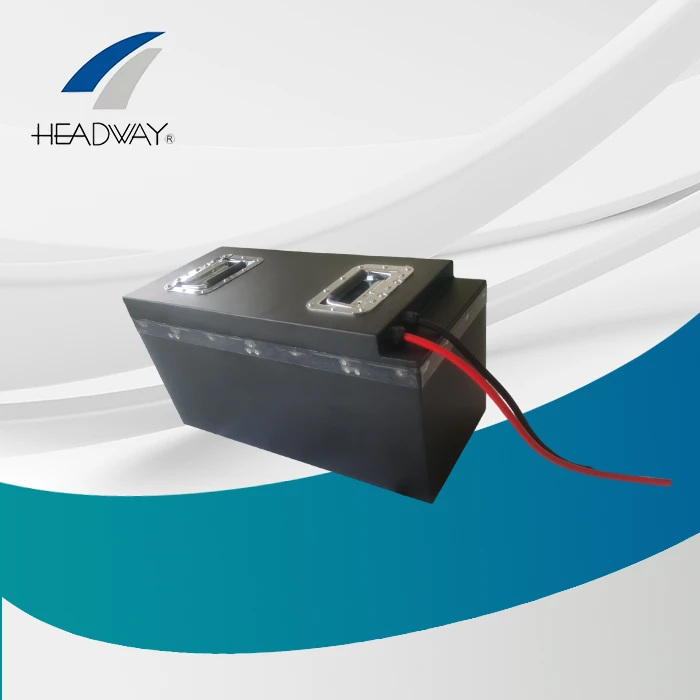

1）Battery Pack：76.8V110Ah

2）Maximum Size：550*243*280mm



2.1 Battery pack structure



2.2 Battery pack parameter

No.	Item	Parameter	Remarks
1	Rated Voltage	76.8V
2	Rated Capacity	110Ah
3	Working voltage range	63.5-87.6V	Can be customized
4	Discharge temperature range	-10-55℃
5	Charge temperature rang	0-50℃
6	Charging Current(Recomm)	30A
7	Charge voltage	87.6V
8	Discharge Current(Recomm)	60A	Can be customized
9	Instant discharging current	150A
10	Life cycle time	3000 times
11	Operating humidity	<80%RH



To prevent the possibility of the battery from leaking, heating, explosion, please observe the following

precautions:

Don’t immerse the battery in water;

Don’t use and leave the battery near a heat source such as fire or heater;

When charging, use a battery charger specifically for that purpose;

Don’t reverse the positive and negative terminals;

Don’t discard the battery in fire or heater;

Don’t connect the battery to an electrical outlet directly;

Don’t discard the battery in fire or heater;

Don’t connect the positive and negative terminal directly with metal objects;

Don’t transport and store the battery together with metal objects such as necklaces, hairpins;

Don’t pierce the battery with a nail or other sharp object.



The capacity of delivery battery is approximately at 50% of charging. During the transportation, keep the battery away from acutely vibration, impacting, polarization, drenching.



5.1 Battery status: zero state of battery is strictly prohibited during storage, battery voltage during storage should keep 30-60% SOC;

5.2 Storage conditions: keep the place clean and dry; keep the battery pole clean and no pollution; do not place heavy or liquid containing containers on battery; storage place should without flammable, explosive, toxic things such as chemical and other corrosive gases, no strong mechanical vibration and shock, avoid the strong electromagnetic field and the sun exposure. Suggested storage conditions are as follows:

Temperature	Best temperature	Humidity	Atmospheric pressure
-10~35℃	15~30℃	20~80%RH	90~105kPa



6.1 Short-term storage (1 month) of the battery, check the temperature and humidity of the storage place weekly, check the battery for any abnormalities such as leakage. Before using, measure the voltage and charge if below 76.8V.

6.2 Long-term storage (more than 2 months) of the battery, check the temperature and humidity of the storage place weekly, check the battery for any anomalies such as leakage. Every 3 months do the charge and discharge action (recommended 0.2C). Before using, measure voltage, if less than 72V, should charge battery firstly.





Why choose us?

• We have a fast and efficient delivery service that ensures timely delivery of all orders.
• We hope to become an enterprise that is recognized by employees, trusted by shareholders and respected by society.
• We have a strong commitment to continuously improving our products and services to meet the evolving needs of our customers.
• With the development of the times and the progress of the society, in order to make the products meet the new needs of development, our company always adheres to the development idea of 'enlighten new thinking and create a new century'.
• Our Ebike Batteries are designed to be energy-efficient, eco-friendly, and highly cost-effective.
• We are well aware of the fact that our technology must be constantly improved for our 48v Lithium Electric Bike to compete with other similar products.
• With our vast experience and knowledge in this industry, we ensure that each product we produce is of the highest quality.
• We create our own competitiveness through technological innovation. For this purpose, we have been working hard to exceed all possible limits and never stop.
• We offer a hassle-free return policy to ensure our customers are completely satisfied with their purchases.
• Our 48v Lithium Electric Bike has a good reputation in domestic and international markets, so that our company and users in the market competition to achieve a win-win situation.

Introduction

As society becomes more environmentally conscious, electric bikes have gained popularity as a greener alternative means of transportation. Among them, the 48v Lithium Electric Bike stands out as a cutting edge and practical investment for anyone looking to venture into the world of electric bikes.



The 48v Lithium Electric Bike is equipped with advanced technology and superior engineering that makes it highly efficient and longer-lasting. The bike is designed with the latest lithium-ion battery, which can provide a more extended period of distance coverage that extends up to 80 kilometers per charge, making it the perfect electric bike for long-distance commuting and city use.



Features and Benefits

1. Cutting-Edge Design

The 48v Lithium Electric Bike is a piece of modern technology that comes complete with advanced features. Equipped with a high-quality aluminum alloy frame, the 48v lithium electric bike offers improved durability and resistance to shock and weather elements. Its sleek design and vibrant colors are designed to make it stand out from regular bikes and grab attention.



2. Advanced Lithium-Ion Battery Technology

The most significant advantage of the 48v Lithium Electric Bike is the advanced 48v 12.5AH lithium-ion battery. It offers high capacity, which allows the bike to travel up to 80 kilometers once fully charged. The battery weighs just 4kg, making it easy to carry, and it fully charges in just six hours, making it so easy to use.



3. Great Speed

The 48v Lithium Electric Bike is equipped with a powerful 500W brushless motor that provides great optimum power. Depending on the weight of the rider, it can reach a top speed of 40kph. The motor ensures that it climbs hills with ease and smooth acceleration.



4. Superior Braking System

The braking system is another critical aspect of the 48v Lithium Electric Bike. With effective front and back brake systems, the bike guarantees a safe and comfortable ride in any weather condition or terrain.



5. Strong Performance

Riding the 48v Lithium Electric Bike is a memorable experience, with exceptional performance. The bike is designed with a Shimano derailleur that provides up to 21 different gears, tailoring to differing driving needs. It also features a suspension system that makes it easy to ride on uneven roads.



Conclusion

The 48v Lithium Electric Bike is a perfect option for individuals searching for a greener alternative means of transportation that is eco-friendly and easy to use. With 21 gears, a powerful motor, and suspension, it provides a seamless riding experience. The lithium-ion battery and robust design make it longer-lasting, valuable, and a worthwhile investment. If you are a retailer seeking to offer your customers a comfortable and reliable electric bike, the 48v Lithium Electric Bike checks all the boxes – efficiency, convenience, and affordability in one package. Order yours today and get going on a thrilling adventure with ease and convenience!
