80v Lithium Battery
Description
Technical Parameters
LiFePO4 51.2V60Ah for Home Energy Storage
|
Features of LiFePO4 Battery |

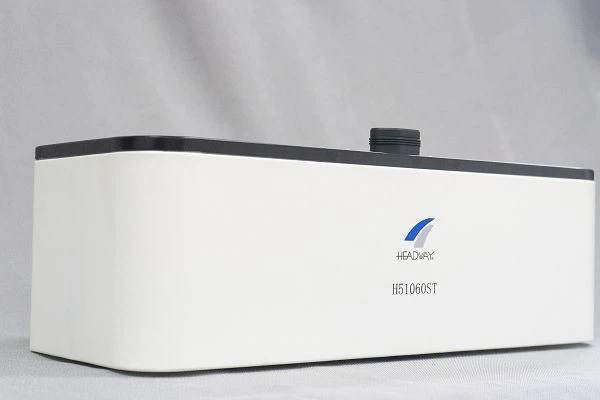

Product Photos |
||||||||
|
Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery,helping to minimize replacement cost and reduce total cost of ownership. |
|
||||||||
|
Lighter Weight: About 40% of the weight of a comparable lead acid battery,A ”drop in” replacement for lead acid battery. |
|||||||||
|
Higher Power: Delivers twice power of lead acid battery, even high discharge rate,while maintain high energy capacity. |
|||||||||
|
Wider Temperature Range: -10℃~55℃. |
|||||||||
|
Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact,over charging or short circuit situation. |
|||||||||
|
No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization. |
HXX60ST |
||||||||
|
The pictures are slightly different from the real object, please take the real object as the standard. |
|||||||||
|
Functions of Battery |
Qualifications |
||||||||
|
OVP,UVP,OTP,OCP,SCP. |
20 years professional experience on lithium ion battery power designing, manufacturing, sales |
||||||||
|
Self-management balancing function.on charging and discharging,single cell |
|||||||||
|
Passed ISO9001, ISO14001, ISO45001, UL1642, CE, ROHS, IEC62619, IEC62620, UN38.3 |
|||||||||
|
Supports RS485/CAN. communication with mainstream inverters over |
|||||||||
|
Battery cell cost advantage |
|||||||||
|
Intelligent design,supports battery upgrade over wifi |
|||||||||
Model HXX060ST
|
General Data |
||||||||
|
Battery Module |
H51060ST(3.072kWh,51.2V,30kg) |
|||||||
|
Number of Modules |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Energy(kWh) |
9.21 |
12.28 |
15.36 |
18.43 |
21.50 |
24.57 |
27.64 |
30.72 |
|
Usable Energy (kWh) |
8.29 |
11.05 |
13.82 |
16.58 |
19.35 |
22.11 |
24.87 |
27.64 |
|
Nominal Voltage (V) |
153.6 |
204.8 |
256 |
307.2 |
358.4 |
409.6 |
460.8 |
512 |
|
Operating Voltage Range(V) |
141.6-170.4 |
188.8-227.2 |
236-284 |
283.2-340.8 |
330.4-397.6 |
377.6-454.4 |
424.8-511.2 |
472-568 |
|
Dimension (W*D*H)mm |
600*220*807 |
600*220*997 |
600*220*1187 |
600*220*1377 |
600*220*1567 |
600*220*1757 |
600*220*1947 |
600*220*2137 |
|
Weight(kg) |
94 |
124 |
154 |
184 |
214 |
244 |
274 |
304 |
|
Standard Charge/Discharge Current |
15A/30A |
|||||||
|
Max Charge/Discharge Current |
30A/60A |
|||||||
|
Cycle Life |
≥5000 cycles@70%DOD |
|||||||
|
Design Life |
≥10 years @25℃ |
|||||||
|
Self-Discharge (30 days) |
≤5% @25℃ |
|||||||
|
Efficiency of Charge |
≥98% |
|||||||
|
Efficiency of Discharge |
≥100% @0.2C |
|||||||
|
≥96% @0.5C |
||||||||
|
Charge Mode |
0.2C to N*56.8V, then N*56.8V charge current to 0.02C (CC/CV) |
|||||||
|
Discharge Cut-off Voltage |
≤N*47.2V |
|||||||
|
Water Dust Resistance |
IP54 |
|||||||
|
Case |
Iron (Insulation painting) |
|||||||
|
LCD |
Displays the total voltage pack, cell voltage, temperature, BMS status,etc |
|||||||
|
Communication |
RS485/CAN |
|||||||
|
Wifi |
||||||||
|
Operating Environment |
||||||||
|
Charge Temperature Range |
0℃~45℃ |
|||||||
|
Discharge Temperature Range |
-10℃~55℃ |
|||||||
|
Optimum Operation Temperature |
10℃~35℃ |
|||||||
|
Storage Temperature |
-10℃~35℃ |
|||||||
|
≤85% Relative Humidity |
||||||||
Why choose us?
- Our Lithium Ion Batteries products are produced in a clean and environmentally friendly facility.
- We strive to form a strong quality enterprise and enhance the core competitiveness of the enterprise.
- Our company is a manufacturer and supplier with competitive prices.
- Under the complex and rigorous control mechanism, along with the application of advanced production, management and testing technology, our company has achieved consistency in all product independent manufacturing.
- Our Lithium Ion Batteries products are designed to be environmentally friendly and promote sustainable development.
- We have strengthened the finished product testing mechanism, and our products are tested in all aspects by specialized personnel to ensure that every step is strictly controlled.
- Our factory has a team of experienced professionals who are dedicated to ensuring customers’ satisfaction.
- We share the fruits of corporate development, and realize the common development of employees and the company.
- We are committed to providing safe and reliable Lithium Ion Batteries products that comply with international regulations.
- Based on 80v Lithium Battery industry, we closely integrate modern business concepts and ideas with the development of the company.
Introducing the 80v Lithium Battery – The Power to Propel Your Business
Are you looking for a reliable and high-performance lithium battery that can meet the growing energy demands of your business? Look no further than the 80v Lithium Battery – the perfect solution for powering all your equipment.
Made with the highest-quality materials and designed for maximum efficiency, our lithium battery is the perfect combination of power and durability. Whether you need to power electric vehicles, industrial machinery, or residential solar systems, our lithium battery can provide the energy you need, when you need it.
Here are some of the key features that make the 80v Lithium Battery the best choice for your business:
1. High Energy Density
Our lithium battery has an energy density that is 30% higher than that of traditional lead-acid batteries. This means that you can store more energy in a smaller and lighter package, making it easier to transport and install. And with its compact size, our lithium battery takes up less space for the same amount of energy, which can be especially beneficial for businesses with limited real estate.
2. Long Life
Our 80v Lithium Battery is designed to last three to four times longer than traditional lead-acid batteries. This is due to its superior chemistry and innovative construction, which minimizes wear and tear on the battery over time. You won't have to replace our lithium battery as frequently as other batteries, which helps you save money on maintenance costs and downtime.
3. Fast Charging
Our lithium battery is capable of charging up to 50% faster than other batteries, which means you can spend less time waiting for it to charge and more time using it. This is especially useful for businesses that need to quickly recharge their equipment, such as logistics companies running delivery vehicles.
4. Safe and Reliable
Our lithium battery is designed with built-in safety features to ensure that it operates safely and reliably under any conditions. It is equipped with advanced protection circuits that prevent overcharging, overheating, and other hazards that can lead to battery failure. Plus, our lithium battery has a high level of stability and can tolerate both high and low temperatures, making it a great choice for businesses operating in extreme environments.
5. Environmentally Friendly
Our 80v Lithium Battery is more environmentally friendly than traditional lead-acid batteries. It doesn't contain any toxic substances, and it produces less waste during the manufacturing process. Plus, it can be easily recycled at the end of its useful life, which helps reduce the environmental impact of your business operations.
6. Cost-effective
Our lithium battery is more expensive than traditional lead-acid batteries, but it is more cost-effective over its lifetime due to its longer lifespan and high energy density. You will save money on maintenance costs, replacement costs, and energy costs over time, making it a great investment for your business.
In conclusion, the 80v Lithium Battery is the perfect solution for businesses that need a reliable, high-performance lithium battery. With its high energy density, long life, fast charging, safety features, and environmental friendliness, it is the best choice for powering all your equipment. Contact us today to learn more about how the 80v Lithium Battery can propel your business forward.
