Lithium Batteries for Solar Off Grid
Description
Technical Parameters

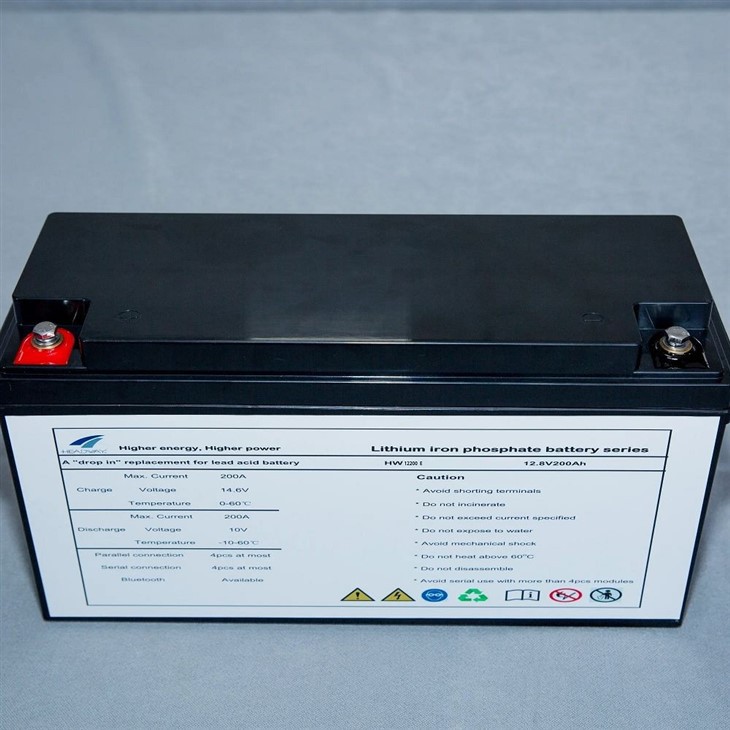

Feature of LiFePO4 Battery Product Photo
● Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.
● Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ”drop in” replacement for lead acid battery.
● Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity.
● Wider Temperature Range: -10℃~60℃
● Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact,over charging or short circuit situation.
● HW12100 S
● No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.

Functions of BMS Application
● Over charge detection function
● Over discharge detection function
● Over current detection function
● Temperature protection function
● Short circuit detection function
● Balance function
● Household
● Solar light
● RV
● Fishing boat
● Golfcart
● Telecommunication

Charge curves at different C-rates
Discharge curves at different C-rates

Life cycle at different DOD
Specification
|
Model |
HW12100 S |
|
|
Electrical Characteristics |
Nominal Voltage |
12.8V |
|
Nominal Capacity |
100Ah |
|
|
Energy |
1280Wh |
|
|
Internal Resistance |
≤20mΩ (without BMS) |
|
|
Cycle Life |
≥3000 cycles |
|
|
Design Life |
10 years @25℃ |
|
|
Self-Discharge (30 days) |
≤5%,@25℃ |
|
|
Efficiency of Charge |
≥98% |
|
|
Efficiency of Discharge |
≥100% @ 0.2C ≥96% @ 1C |
|
|
Charge |
Charge Voltage |
14.2-14.6V |
|
Charge Mode |
0.2C to 14.6V, then 14.6V charge current to 0.02C (CC/CV) |
|
|
Max. Charge Current |
100A |
|
|
Discharge |
Max. Continuous Discharge Current |
100A |
|
Discharge Cut-off Voltage |
9.5-10.5V |
|
|
Environmental |
Charge Temperature Range |
0℃~60℃ |
|
Discharge Temperature Range |
-10℃~60℃ |
|
|
Optimum Operation Temperature |
10℃~35℃ |
|
|
Storage Temperature |
-20℃~55℃ ≤85% Relative Humidity |
|
|
Water Dust Resistance |
IP65 |
|
|
Mechanical |
Case |
ABS |
|
Terminals |
M8 |
|
|
Dimensions |
260*168*209mm |
|
|
Max. Weight |
12kg |
|
|
Min. Gravimetric Specific energy |
106Wh/kg |
|
|
Others |
Communication port |
Bluetooth |
|
Parallel in maximum |
4pcs |
|
|
Serial in maximum |
4pcs |
|
Feature of LiFePO4 Battery Product Photo
● Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.
● Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ”drop in” replacement for lead acid battery.
● Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity.
● Wider Temperature Range: -10℃~60℃
● Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact,over charging or short circuit situation.
● HW12200 S
● No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.

Functions of BMS Application
● Over charge detection function
● Over discharge detection function
● Over current detection function
● Temperature protection function
● Short circuit detection function
● Balance function
● Household
● Solar light
● RV
● Fishing boat
● Golfcart
● Telecommunication

Charge curves at different C-rates
Discharge curves at different C-rates

Life cycle at different DOD
Specification
|
Model |
HW12200 S |
|
|
Electrical Characteristics |
Nominal Voltage |
12.8V |
|
Nominal Capacity |
200Ah |
|
|
Energy |
2560Wh |
|
|
Internal Resistance |
≤20mΩ (without BMS) |
|
|
Cycle Life |
≥3000 cycles |
|
|
Design Life |
10 years @25℃ |
|
|
Self-Discharge (30 days) |
≤5%,@25℃ |
|
|
Efficiency of Charge |
≥98% |
|
|
Efficiency of Discharge |
≥100% @ 0.2C ≥96% @ 1C |
|
|
Charge |
Charge Voltage |
14.2-14.6V |
|
Charge Mode |
0.2C to 14.6V, then 14.6V charge current to 0.02C (CC/CV) |
|
|
Max. Charge Current |
200A |
|
|
Discharge |
Max. Continuous Discharge Current |
200A |
|
Discharge Cut-off Voltage |
9.5-10.5V |
|
|
Environmental |
Charge Temperature Range |
0℃~60℃ |
|
Discharge Temperature Range |
-10℃~60℃ |
|
|
Optimum Operation Temperature |
10℃~35℃ |
|
|
Storage Temperature |
-20℃~55℃ ≤85% Relative Humidity |
|
|
Water Dust Resistance |
IP65 |
|
|
Mechanical |
Case |
ABS |
|
Terminals |
M8 |
|
|
Dimensions |
483*170*240mm |
|
|
Max. Weight |
23kg |
|
|
Min. Gravimetric Specific energy |
110Wh/kg |
|
|
Others |
Communication port |
Bluetooth |
|
Parallel in maximum |
4pcs |
|
|
Serial in maximum |
4pcs |
|
Why choose us?
- Our Lithium Solar Batteries are engineered for maximum performance and reliability.
- Our business strategy is, intensive management, intelligent production, professional collaboration, one-stop service.
- Our Lithium Solar Batteries are designed to be user-friendly and easy to operate.
- The Lithium Batteries For Solar Off Grid provided by us has excellent features, which make our product different from other similar products.
- Our Lithium Solar Batteries provide stable and consistent power output.
- We look forward to working with you, respecting and surpassing your individual needs, and providing you with the best products and services!
- We provide our customers with seamless communication and technical support.
- Three levels of customer thinking: finding needs and realizing customer value; Mining demand and improving customer value; Lead demand and create customer value.
- Our Lithium Solar Batteries are eco-friendly and energy-efficient.
- The company adheres to the principle of common development with customers, regards quality as its life, seeks development by quality, and meets user needs with high-quality services.
Introducing the Next-Generation Lithium Batteries for Solar Off-Grid Solution
Are you looking for a reliable and efficient power solution to support your off-grid solar system? If yes, then look no further than our lithium batteries for solar off-grid solution. We offer you the most advanced energy storage technology, which is easy to install, cost-effective, and environment-friendly.
Our lithium batteries for solar off-grid solution comes in a variety of models to suit various energy storage needs. Whether you're looking for a small-scale solution for your home or a large-scale solution for your commercial project, our product range has got you covered.
Here are several key aspects that make our lithium batteries stand out:
High Energy Density - Our batteries offer a high energy density, which means that they can store more energy per unit than other traditional batteries. With this increased energy density, you can have access to more power for longer periods before recharge.
Long Service Life - Our batteries have a long service life. They can last for up to 10 years, and some can even go beyond if well maintained. This means that you can get more value for your investment, without having to worry about your batteries losing power or failing prematurely.
Fast Charging and Discharging - Our lithium batteries come with an advanced charging and discharging mechanism, which allows for faster and more efficient energy transfer. This means that you can charge your batteries quickly and efficiently, and also discharge them faster when you need power to run your solar system.
Safe and Reliable - The safety and reliability of our batteries are the top priorities for us. That is why we have designed them to be shock-resistant, fire-resistant, and explosion-proof. This ensures that your batteries are safe to use and deliver reliable performance over their entire life.
Easy to Install - Our lithium batteries for solar off-grid are easy to install, making them a hassle-free solution for homeowners and businesses alike. You can have your batteries up and running in no time, with no special skills or tools required.
Cost-Effective - Our lithium batteries are cost-effective in the long run. While they might come at a slightly higher price than traditional batteries, they offer better value for your money over the lifetime of the product. This is because they require less maintenance, last longer, and offer better efficiency in energy storage and transfer.
Environment-Friendly - Our batteries are environment-friendly because they are made of recyclable materials and do not emit harmful greenhouse gases. They are also energy-efficient and help to reduce your carbon footprint, making them an ideal choice for eco-conscious homeowners and businesses.
In conclusion, our lithium batteries for solar off-grid solutions are a perfect choice for anyone looking for a reliable, efficient, and cost-effective energy storage solution. With a long service life, fast charging and discharging mechanism, and environmentally-friendly features, our batteries are a reliable and sustainable choice for your off-grid solar system. We are committed to providing you with the best quality products that meet your needs and exceed your expectations. Contact us today and take your first step towards independent and sustainable power!
