Solar System Energy Storage

About 40% of the weight of a comparable lead acid battery,A ”drop in” replacement for lead acid battery.
Send Inquiry
Chat Now

Description

Technical Parameters

LiFePO4 51.2V100Ah for Home Energy Storage



Features of LiFePO4 Battery

Product Photos

Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery,helping to minimize replacement cost and reduce total cost of ownership.



product-534-471

Lighter Weight: About 40% of the weight of a comparable lead acid battery,A ”drop in” replacement for lead acid battery.

Higher Power: Delivers twice power of lead acid battery, even high discharge rate,while maintain high energy capacity.

Wider Temperature Range: -10℃~55℃.

Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact,over charging or short circuit situation.

No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.

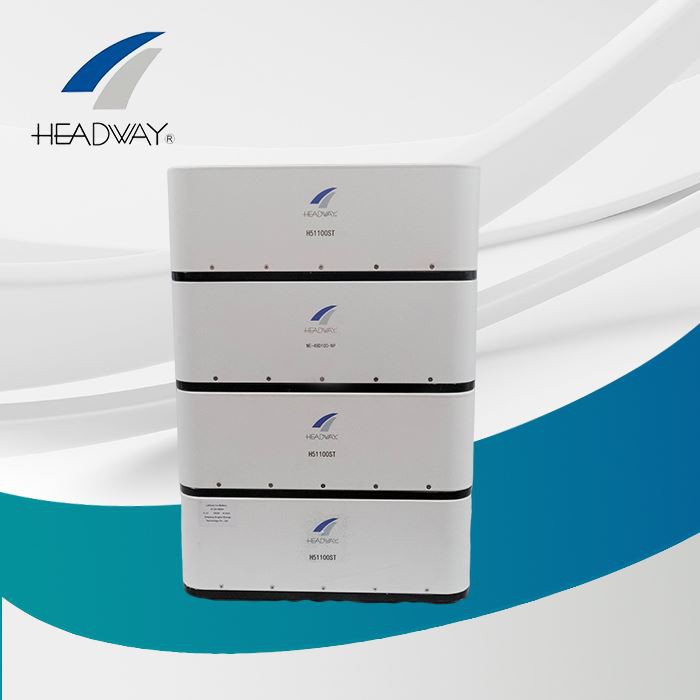

H51100ST

The pictures are slightly different from the real object, please take the real object as the standard.

Functions of Battery

Qualifications

OVP,UVP,OTP,OCP,SCP.

20 years professional experience on lithium ion battery power designing, manufacturing, sales

Self-management balancing function.on charging and discharging,single cell

Passed ISO9001, ISO14001, ISO45001, UL1642, CE,

ROHS, IEC62619, IEC62620, UN38.3

Supports RS485/CAN. communication with mainstream inverters over

Intelligent design,supports battery upgrade over RS232 software

Battery cell cost advantage



product-900-499



Model                                                                                                                                       H51100RC

General Data

Nominal Voltage

51.2V

Nominal Capacity

100Ah

Energy

5120Wh

Internal Resistance(ACR)

≤100mΩ(without BMS)

Cycle Life

≥5000 cycles@70%DOD

Design Life

≥10 years @25℃

Self-Discharge (30 days)

≤5% @25℃

Efficiency of Charge

≥98%

Efficiency of Discharge

≥100% @0.2C

≥96% @1C

Charge Voltage

56-57.6V

Charge Mode

0.2C to 57.6V, then 57.6V charge current to 0.02C (CC/CV)

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

100A

Discharge Cut-off Voltage

45V±0.5V

Water Dust Resistance

IP20

Case

Iron (Insulation painting)

Dimensions(W*D*H) (excluding hanger and handle bar)

460*460*165mm

Max. Weight

45kg

Min. Gravimetric Specific energy

113Wh/kg

Operating Environment

Charge Temperature Range

0℃~60℃

Discharge Temperature Range

-10℃~60℃

Optimum Operation Temperature

10℃~35℃

Storage Temperature

-20℃~55℃

≤85% Relative Humidity

General Functions

Parallel Communication

2*RS485

Battery with Inverter Communication

1*RS485/1*CAN

Battery Debugging Communication

1*RS232

Dry Contact

PIN1 to PIN2:Normally open, closed during low power PIN3 to PIN4:Normally open, closed during fault protection

SOC Light

6 * LED

Charge Current limit

When the charging current exceeds the set value, turn on the current limit and limit the current to 20A

Optional Functions

LCD Screen

Yes

Displays the total voltage pack, cell voltage, temperature, BMS status,etc

© No

Anti-theft function

Yes

Keep the vibration for more than 1 minutes to turn on anti-theft

© No

Buzzer

Yes © No





Why choose us?

  • Our Solar Battery Storage products are designed to maximize the use of renewable energy sources.
  • We insist on providing customers with stable quality, excellent cost products and fast and close technical support and value-added services.
  • We utilize the latest manufacturing practices to produce efficient and reliable Solar Battery Storage products.
  • We always pay attention to the market, and use our keen market insight to accurately position ourselves to achieve a win-win situation with our customers.
  • Our Solar Battery Storage products are designed to be scalable, allowing for easy expansion as needed.
  • We actively introduce value-added service mechanism to improve the competitive advantage of our Solar System Energy Storage.
  • We offer a range of customization options for our Solar Battery Storage products to meet specific customer requirements.
  • The Solar System Energy Storage of our company is dependable in quality, competitive in prices, excellent in quality and sustainable.
  • Our Solar Battery Storage products are available in a variety of sizes and capacities.
  • Enterprise training should not only be based on the present, but also focus on the future, not only on the local, but also on the global.

As the world runs out of fossil fuels, alternatives to traditional power generation are becoming increasingly important. One of the most promising areas of research for clean energy is solar power. With the advent of photovoltaic cells, solar energy has become an attractive option for many households and businesses. However, there are still problems associated with solar power, such as inconsistent power generation and a lack of storage capacity.

This is where our Solar System Energy Storage comes in. Our product is designed to make the most out of solar energy, by providing a high-capacity storage system that can store excess energy for use when sunlight is not available.

One of the key features of our Solar System Energy Storage is its high capacity storage system. This is achieved through the use of cutting-edge lithium-ion battery technology, which allows for the storage of large amounts of energy in a small space. The battery unit can be connected directly to solar panels, to store energy during the day, or alternatively, it can be connected to the grid to store excess energy during off-peak hours.

Another major advantage of our product is its portability, which makes it ideal for use in remote locations that are not connected to the power grid. In addition, our system can be operated as a standalone unit, or it can be easily combined with other solar panels and systems, to create a larger, more powerful solar power system.

Our Solar System Energy Storage is also very reliable and durable, thanks to the use of high-quality components and materials. The battery unit is designed to withstand extreme temperatures and weather conditions, making it ideal for use in harsh environments. The system also has built-in protection features that ensure safe and reliable operation, even in the event of a power surge or other unexpected event.

Finally, our Solar System Energy Storage is very easy to install and use. It comes with detailed instructions and all the necessary components for quick and easy installation. Once installed, the system can be easily configured and operated using a simple, intuitive interface.

Overall, our Solar System Energy Storage is an excellent choice for anyone looking to take advantage of the benefits of solar energy. Whether you are a homeowner looking to reduce your carbon footprint and save money on electricity bills, or a business owner looking to cut costs and improve your sustainability, our product can help you achieve your goals. With its high capacity storage, portability, reliability, and ease of use, it is a must-have for anyone serious about solar power. Contact us today to learn more about how our Solar System Energy Storage can help you take the next step towards a cleaner, more sustainable future.
