Description
Technical Parameters
LiFePO4 48V100Ah for Telecom Use
|
Features of LiFePO4 Battery |

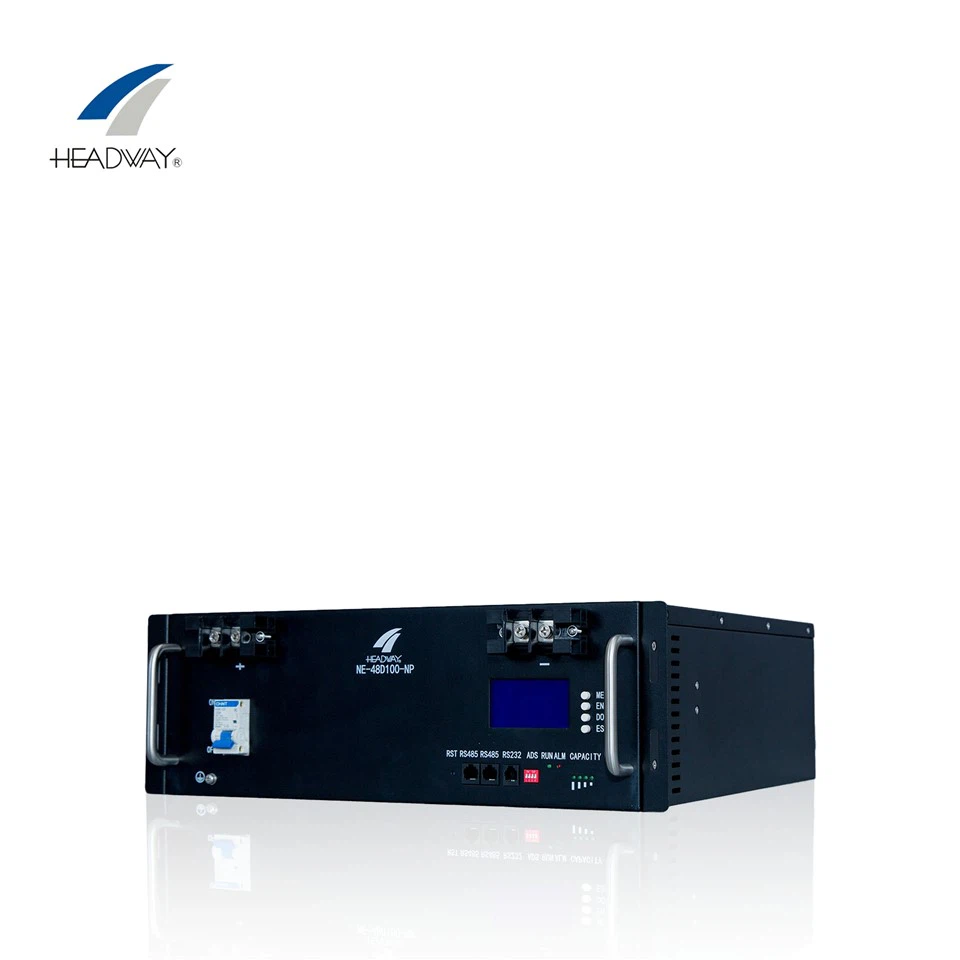

Product Photo |
|||||
|
Longer Cycle Life: : Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery,helping to
minimize replacement cost and reduce total cost of ownership.
|
 |
|||||
|
Lighter Weight: About 40% of the weight of a comparable lead acid battery,A "drop in" replacement for lead acid battery. |
||||||
|
Higher Power: Delivers twice power of lead acid battery, even high discharge rate,while maintain high energy capacity. |
||||||
|
Wider Temperature Range: -10℃~55℃. |
||||||
|
Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact,over charging or short circuit situation. |
||||||
|
No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization. |

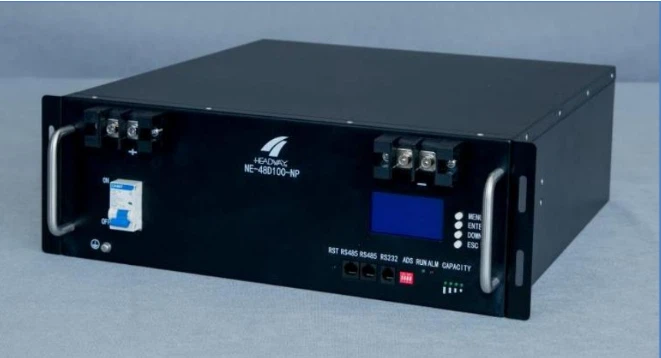

T48100-3.5U
|
|||||
|
The picture is slightly different from the real object, please take the real object as the standard. |
||||||
|
Functions of Battery |
Qualifications |
|||||
|
● OVP,UVP,OTP,OCP,SCP. |
● 20 years professional experience on lithium ion battery power designing, manufacturing, sales |
|||||
|
● Self-management on charging and discharging,single cell power designing, manufacturing, sales balancing function. |
||||||
|
● Supports communication with equipment over RS485. |
● Passed ISO9001, ISO14001, ISO45001, UL1642, CE, ROHS, IEC62619, IEC62620, UN38.3
|
|||||
|
● Intelligent design,supports battery upgrade over RS232. |
||||||
|
● Colorful LCD,displays battery information |
● Battery cell cost advantage |
|||||
Model T48100-3.5U
|
General Data |
|
|
Nominal Voltage |
48V |
|
Nominal Capacity |
100Ah |
|
Energy |
4800Wh
|
|
Internal Resistance(ACR) |
≤30mΩ
|
|
Cycle Life |
≥3000 cycles
|
|
Design Life |
≥10 years @25℃
|
|
Self-Discharge (30 days) |
≤5% @25℃
|
|
Efficiency of Charge |
≥98% |
|
Efficiency of Discharge |
≥100% @ 0.2C |
|
≥96% @ 0.5C |
|
|
Charge Mode |
0.2C to 54V, then 54V charge current to 0.02C (CC/CV)
|
|
Max. Continuous Charge Current |
100A |
|
Max. Continuous Discharge Current |
100A |
|
Discharge Cut-off Voltage |
≤43.5V
|
|
Water Dust Resistance |
IP21 |
|
Case |
Iron (Insulation painting)
|
|
Dimensions(W*H*D) (excluding hanger and handle bar) |
442*450*157mm
|
|
Max. Weight |
≤43kg
|
|
Min. Gravimetric Specific energy |
≥112Wh/kg
|
|
Parallel in maximum
|
15pcs
|
|
Operating Environment |
|
|
Charge Temperature Range |
0℃~45℃ |
|
Discharge Temperature Range |
-10℃~55℃ |
|
Optimum Operation Temperature |
10℃~35℃
|
|
Storage Temperature |
-10℃~35℃
|
|
≤85% Relative Humidity |
|
|
General Functions |
|
|
Parallel Communication |
RS485 |
|
Battery with Inverter Communication |
RS485 |
|
Battery Debugging Communication |
RS232 |
|
SOC Light |
4 * LED |
|
Charge Current limit |
When the charging current exceeds the set value, turn on the current limit and limit the current to 20A |
|
Optional Functions |
|
|
LCD Screen |
◎ Yes Displays the total voltage pack, cell voltage, temperature, BMS status,etc |
|
No |
|
|
Anti-theft function |
Yes Keep battery tilt more than 15° to turn on anti-theft |
|
◎ No |
|
|
Buzzer |
Yes ◎ No |
|
Dry Contact
|
Yes
PIN1 to PIN2:Normally open, closed during low power
PIN3 to PIN4:Normally open, closed during fault protection
|
|
◎ No
|
|
