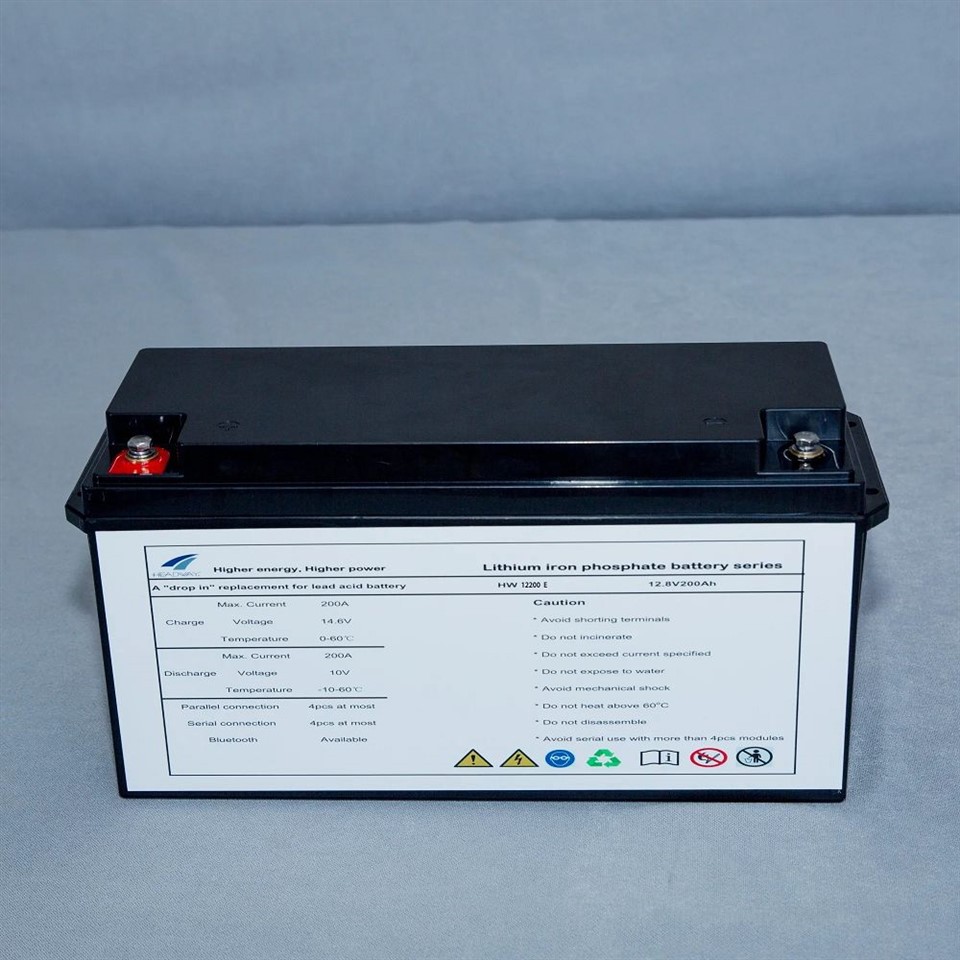

Lithium Phosphate Marine Battery
video

Lithium Phosphate Marine Battery

Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.
Send Inquiry
Chat Now

Description

Technical Parameters

Feature of LiFePO4 Battery                                                                                                           Product Photo



● Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.

● Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ”drop in” replacement for lead acid battery.

● Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity.

● Wider Temperature Range: -10℃~60℃

● Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact,

over charging or short circuit situation.

● HW12100 S

● No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.

product-192-189



Functions of BMS                                                                                                                                       Application





● Over charge detection function

● Over discharge detection function

● Over current detection function

● Temperature protection function

● Short circuit detection function

● Balance function



● Household

● Solar light

● RV

● Fishing boat

Golfcart

Telecommunication

product-1419-502



Charge curves at different C-rates



Discharge curves at different C-rates





product-547-383

Life cycle at different DOD



Specification



Model

HW12100 S

Electrical Characteristics

Nominal Voltage

12.8V

Nominal Capacity

100Ah

Energy

1280Wh

Internal Resistance

≤20mΩ (without BMS)

Cycle Life

≥3000 cycles

Design Life

10 years @25℃

Self-Discharge (30 days)

≤5%,@25℃

Efficiency of Charge

≥98%

Efficiency of Discharge

≥100% @ 0.2C

≥96% @ 1C

Charge

Charge Voltage

14.2-14.6V

Charge Mode

0.2C to 14.6V, then 14.6V charge current

to 0.02C (CC/CV)

Max. Charge Current

100A

Discharge

Max. Continuous Discharge Current

100A

Discharge Cut-off Voltage

9.5-10.5V

Environmental

Charge Temperature Range

0℃~60℃

Discharge Temperature Range

-10℃~60℃

Optimum Operation Temperature

10℃~35℃

Storage Temperature

-20℃~55℃

≤85% Relative Humidity

Water Dust Resistance

IP65

Mechanical

Case

ABS

Terminals

M8

Dimensions

260*168*209mm

Max. Weight

12kg

Min. Gravimetric Specific energy

106Wh/kg

Others

Communication port

Bluetooth

Parallel in maximum

4pcs

Serial in maximum

4pcs



Feature of LiFePO4 Battery                                                                                                              Product Photo



●Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.

●Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ”drop in” replacement for lead acid battery.

●Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity.

●Wider Temperature Range: -10℃~60℃

●Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact,

over charging or short circuit situation.

●HW12200 S

●No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.

product-310-205



Functions of BMS                                                                                                                                       Application





● Over charge detection function

● Over discharge detection function

● Over current detection function

● Temperature protection function

● Short circuit detection function

● Balance function



● Household

● Solar light

● RV

● Fishing boat

● Golfcart

● Telecommunication

product-1419-502



Charge curves at different C-rates



Discharge curves at different C-rates





product-547-383

Life cycle at different DOD



Specification



Model

HW12200 S

Electrical Characteristics

Nominal Voltage

12.8V

Nominal Capacity

200Ah

Energy

2560Wh

Internal Resistance

≤20mΩ (without BMS)

Cycle Life

≥3000 cycles

Design Life

10 years @25℃

Self-Discharge (30 days)

≤5%,@25℃

Efficiency of Charge

≥98%

Efficiency of Discharge

≥100% @ 0.2C

≥96% @ 1C

Charge

Charge Voltage

14.2-14.6V

Charge Mode

0.2C to 14.6V, then 14.6V charge current

to 0.02C (CC/CV)

Max. Charge Current

200A

Discharge

Max. Continuous Discharge Current

200A

Discharge Cut-off Voltage

9.5-10.5V

Environmental

Charge Temperature Range

0℃~60℃

Discharge Temperature Range

-10℃~60℃

Optimum Operation Temperature

10℃~35℃

Storage Temperature

-20℃~55℃

≤85% Relative Humidity

Water Dust Resistance

IP65

Mechanical

Case

ABS

Terminals

M8

Dimensions

483*170*240mm

Max. Weight

23kg

Min. Gravimetric Specific energy

110Wh/kg

Others

Communication port

Bluetooth

Parallel in maximum

4pcs

Serial in maximum

4pcs





Why choose us?

  • Our manufacturing process is streamlined to ensure consistency and quality.
  • Our company uses wisdom to gather forge ahead, write a new chapter, care for people with sincerity, and repay social welfare with a pure heart.
  • Our team of experts is dedicated to providing first-rate customer service.
  • The performance of our Lithium Phosphate Marine Battery is comparable to the advanced level of similar products at home and abroad, and they are widely favored by international and domestic industry chain giants.
  • Our competitive pricing and high-quality products have made us a preferred supplier for many businesses.
  • Promote the transformation of enterprises with market-oriented scientific and technological innovation system. Fifth, vigorously promote the construction of modern enterprise system, and strive to transform the enterprise management mechanism.
  • Our team is committed to providing timely delivery and exceptional service.
  • We always regard quality as the foundation of our lives, advocate continuous innovation and change, promote the stable development of the company through continuous team learning and collaboration, and always maintain a high-quality corporate image.
  • Our expert technical team can provide you with customized Lithium Solar Battery solutions.
  • We aim at sustainable development of the company and mutual benefit of our customers, and take the corporate spirit of "defying the odds, climbing to the top, leading the industry, and creating a reputation abroad".

Introducing the Lithium Phosphate Marine Battery

Are you on the hunt for a reliable and efficient marine battery for your boat? Look no further than the new Lithium Phosphate Marine Battery, the latest innovation in marine battery technology.



At our manufacturing facility in China, we specialize in creating high-quality and long-lasting batteries for a variety of purposes, including marine and automotive applications. Our Lithium Phosphate Marine Battery is no exception, boasting features that make it stand out from other marine batteries on the market today.



Reliability and Longevity

One of the key features of our Lithium Phosphate Marine Battery is its unparalleled reliability and longevity. Unlike traditional marine batteries that rely on lead-acid technology, our Lithium Phosphate Marine Battery is designed with cutting-edge lithium-ion technology that provides more power and longer-lasting use.



The Lithium Phosphate Marine Battery can last up to 10 times longer than traditional marine batteries, making it an incredibly cost-effective choice for boat owners. Additionally, it is much less susceptible to the damaging effects of deep cycling and overcharging, ensuring that you get the maximum lifespan out of your battery.



High Performance

In addition to its reliability, the Lithium Phosphate Marine Battery also boasts exceptional performance. With a high power-to-weight ratio, it is significantly lighter and more compact than typical marine batteries, making it easy to transport and install.



Despite its small size, the Lithium Phosphate Marine Battery packs a powerful punch, with an impressive capacity that allows it to run all of your boat’s essential systems and accessories. It can also handle high amperage loads, making it particularly useful for power-hungry devices like fish finders and trolling motors.



Safety and Convenience

Another advantage of the Lithium Phosphate Marine Battery over traditional marine batteries is its safety and convenience features. With a built-in battery management system (BMS), it is equipped to prevent overcharging and discharge, as well as short circuits and thermal runaway.



This state-of-the-art BMS also includes a user-friendly monitoring system that allows boat owners to easily check the status of their battery and receive alerts if any issues arise. Additionally, the Lithium Phosphate Marine Battery can be quickly charged to full capacity in as little as two hours, allowing boat owners to get back out on the water faster.



Conclusion

In summary, the Lithium Phosphate Marine Battery is a cutting-edge marine battery that offers boat owners reliability, longevity, high performance, safety, and convenience. With its advanced lithium-ion technology, the Lithium Phosphate Marine Battery is superior to traditional marine batteries in every way, providing power that lasts longer, is more efficient, and is more reliable.



We are proud to be the manufacturer of this game-changing product, and we are excited to offer it to merchants outside of China. If you are interested in learning more about the Lithium Phosphate Marine Battery or placing an order, please do not hesitate to contact us.
