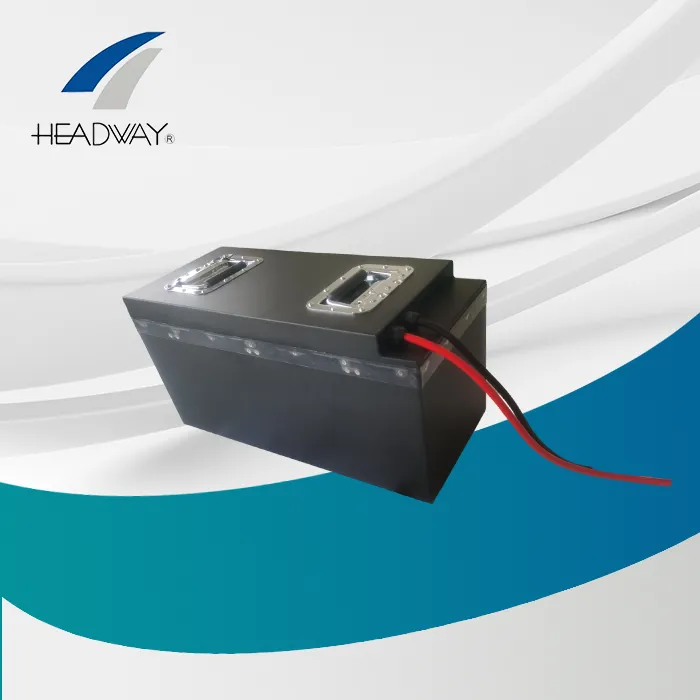

Battery for 1500w Ebike

1）Battery Pack：76.8V110Ah

2）Maximum Size：550*243*280mm



2.1 Battery pack structure



2.2 Battery pack parameter

No.	Item	Parameter	Remarks
1	Rated Voltage	76.8V
2	Rated Capacity	110Ah
3	Working voltage range	63.5-87.6V	Can be customized
4	Discharge temperature range	-10-55℃
5	Charge temperature rang	0-50℃
6	Charging Current(Recomm)	30A
7	Charge voltage	87.6V
8	Discharge Current(Recomm)	60A	Can be customized
9	Instant discharging current	150A
10	Life cycle time	3000 times
11	Operating humidity	<80%RH



To prevent the possibility of the battery from leaking, heating, explosion, please observe the following

precautions:

Don’t immerse the battery in water;

Don’t use and leave the battery near a heat source such as fire or heater;

When charging, use a battery charger specifically for that purpose;

Don’t reverse the positive and negative terminals;

Don’t discard the battery in fire or heater;

Don’t connect the battery to an electrical outlet directly;

Don’t discard the battery in fire or heater;

Don’t connect the positive and negative terminal directly with metal objects;

Don’t transport and store the battery together with metal objects such as necklaces, hairpins;

Don’t pierce the battery with a nail or other sharp object.



The capacity of delivery battery is approximately at 50% of charging. During the transportation, keep the battery away from acutely vibration, impacting, polarization, drenching.



5.1 Battery status: zero state of battery is strictly prohibited during storage, battery voltage during storage should keep 30-60% SOC;

5.2 Storage conditions: keep the place clean and dry; keep the battery pole clean and no pollution; do not place heavy or liquid containing containers on battery; storage place should without flammable, explosive, toxic things such as chemical and other corrosive gases, no strong mechanical vibration and shock, avoid the strong electromagnetic field and the sun exposure. Suggested storage conditions are as follows:

Temperature	Best temperature	Humidity	Atmospheric pressure
-10~35℃	15~30℃	20~80%RH	90~105kPa



6.1 Short-term storage (1 month) of the battery, check the temperature and humidity of the storage place weekly, check the battery for any abnormalities such as leakage. Before using, measure the voltage and charge if below 76.8V.

6.2 Long-term storage (more than 2 months) of the battery, check the temperature and humidity of the storage place weekly, check the battery for any anomalies such as leakage. Every 3 months do the charge and discharge action (recommended 0.2C). Before using, measure voltage, if less than 72V, should charge battery firstly.





Why choose us?

• Our factory offers a wide range of Ebike Batteries that are of superior quality and professional workmanship.
• What we pursue is quality and timeliness. We adhere to the quality policy of 'today's quality, tomorrow's market', and take customer satisfaction as our responsibility.
• We have an uncompromising commitment to quality, excellence, and customer satisfaction in everything we do.
• We hope to take value creation as the core, promote quality and efficiency, and realize the coordinated development of quality, efficiency and scale.
• Our team of experts is always on hand to provide technical support and assistance to our customers.
• The implementation of international quality system standards is the basis of improving product quality.
• Our dedicated team of professionals is always ready to provide technical support, assistance, and solutions to our customers.
• We will provide good quality Battery For 1500w Ebike with fast and caring service as always, and will sincerely cooperate with old and new customers to create a better tomorrow together!
• Our team of professionals is highly trained and knowledgeable in all aspects of Ebike Battery production and service.
• Through institutional innovation, restructuring of the management and control model, and reconstruction of the management system, we comprehensively enhance the corporate management and control capabilities.

Introducing the Battery for 1500w Ebike - the ultimate power solution for electric bicycles that require maximum performance and endurance. This high-capacity battery pack provides reliable and long-lasting power, allowing riders to enjoy longer, faster, and more exciting rides with their ebikes.



Design and Quality

Our Battery for 1500w Ebike is designed and manufactured to meet the highest standards of reliability and safety. The battery pack is made of high-quality materials, including lithium-ion cells that are known for their superior energy density, efficiency, and durability. The pack is housed in a sturdy and waterproof casing that protects the cells from external elements, such as dust, moisture, and temperature changes.



The battery features a smart BMS (Battery Management System) that monitors the health and performance of each cell, ensuring that the pack operates within safe and optimal conditions. The BMS also protects the pack from overcharging, over-discharging, and short-circuiting, which can cause damage to the cells and reduce their lifespan.



Capacity and Range

The Battery for 1500w Ebike has a high-capacity of 48V and 23Ah, which translates to a total energy of 1104Wh. This impressive capacity means that riders can enjoy longer and more challenging rides without worrying about running out of power. The pack is also compatible with most 1500w ebike motors, providing a seamless integration and optimized performance.



With the Battery for 1500w Ebike, riders can achieve a range of up to 60 miles on a single charge, depending on various factors such as the terrain, rider's weight, speed, and level of assistance. This range allows riders to explore new terrains, commute to work or school, and enjoy recreational rides without worrying about range anxiety.



Charging and Maintenance

Our Battery for 1500w Ebike is easy to charge and maintain, thanks to its user-friendly design and features. The pack comes with a 2A charger that can fully charge the pack in about 7.5 hours, from empty to full. The charger features a LED indicator that displays the charging status and alerts the user when the pack is fully charged.



To maintain the longevity and performance of the Battery for 1500w Ebike, we recommend following some simple guidelines, such as avoiding extreme temperatures, keeping the pack clean and dry, and storing the pack in a cool and dry place when not in use. Additionally, the pack should be charged before it reaches a low state of charge, as this can damage the cells and reduce their lifespan.



Conclusion

In conclusion, the Battery for 1500w Ebike is an excellent power solution for riders who demand high-performance, reliability, and endurance from their ebikes. With its high-capacity, range, and smart features, this battery pack can offer riders a seamless and enjoyable riding experience, whether they use their ebikes for commuting, exploring, or leisure. If you're a merchant looking for a reliable and high-quality ebike battery pack, the Battery for 1500w Ebike is definitely worth considering.
